# list-ipsec-phase2

The vpn list-ipsec-phase2 command retrieves a list of IPSec Phase 2 configurations in your VPN. This command displays essential details such as Mode, Protocol, Status, Pfs Group, Lifetime, Local IP Subnet, Remote IP Subnet, and Description.

## Usage

```
cldkctl vpn list-ipsec-phase2 [flags]
```

## Steps

Follow the steps below to run and view the result of this command:

1. Run the following command in your terminal:

```
cldkctl vpn list-ipsec-phase2
```

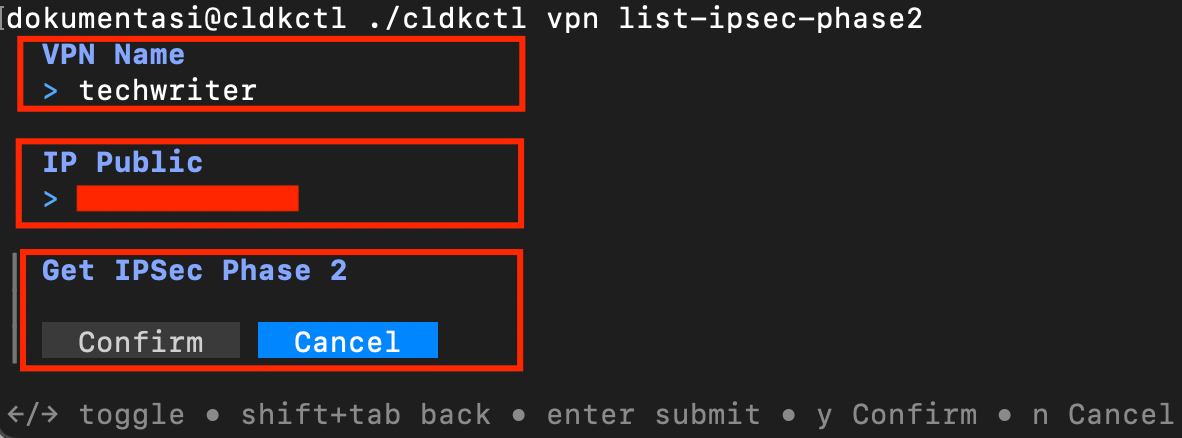

2. Enter the VPN name in the **VPN Name** field. To obtain or verify it, refer to vpn list.
3. Enter the public IP address in the **IP Public** field.
4. Press **y** for Confirm or **n** for Cancel.

<figure><img src="https://753761090-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtAYQyBIz2BclZ3ZHHlS4%2Fuploads%2Fgit-blob-300b2d5ee9286664912c04853946225fc72adca7%2Funknown.png?alt=media" alt=""><figcaption></figcaption></figure>

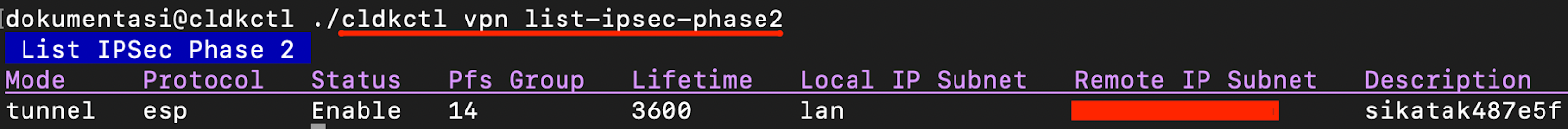

5. Once successful, the terminal displays the IPSec Phase 2 configuration list containing information such as Mode, Protocol, Status, Pfs Group, Lifetime, Local IP Subnet, Remote IP Subnet, and Description.

<figure><img src="https://753761090-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FtAYQyBIz2BclZ3ZHHlS4%2Fuploads%2Fgit-blob-53e042d8015a3ab3427a81a32d112b24b39ec82c%2Funknown.png?alt=media" alt=""><figcaption></figcaption></figure>

| Column           | Description                                                           |
| ---------------- | --------------------------------------------------------------------- |
| Mode             | The mode used for IPSec communication.                                |
| Protocol         | Specifies the protocol used in the IPSec connection.                  |
| Status           | Indicates whether the IPSec Phase 2 is enabled or disabled.           |
| Pfs Group        | Specifies the Perfect Forward Secrecy (PFS) group value.              |
| Lifetime         | Defines the key lifetime duration in seconds.                         |
| Local IP Subnet  | Displays the local network range used for IPSec Phase 2.              |
| Remote IP Subnet | Displays the remote network range connected through IPSec Phase 2.    |
| Description      | Provides an identifier or remark for the IPSec Phase 2 configuration. |

## Flags

{% hint style="info" %}
This command supports [global flags](/panduan-untuk-enterprise/cloudeka-api-list/global-flags.md). Refer to the Global Flags section for details.
{% endhint %}

| Flag       | Description                          |
| ---------- | ------------------------------------ |
| -h, --help | Help for list ipsec phase 2 command. |
